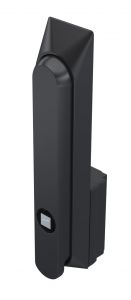

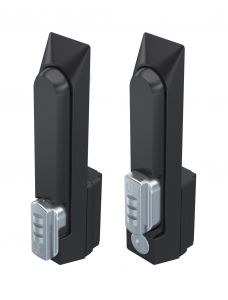

2-077DST DST Swinghandle RS PrC



  • Low profile design
  • Key cylinder DIRAK 1333 with stainless steel dust cap
  • The pre-assembled Swinghandle (single or 3-point cam) can simply be snapped into the cutout
  • RH / LH Application is achieved by an adjustable cam stop with 90° rotation
  • Seismic-proof according to GR-63-CORE, Issue 4
  • Vibration-proof according to DIN EN 61373
  • IP65 DIN EN 60529 by captive sealing
  • Key with synthetic coated grip
  • H-dimension of cam ≥16 mm


  • Swinghandle and dish: zinc die, black
  • Seal: TPE


1. Limiting stop
2. Captive seal
3. Guide swinghandle with pre-assembled cam through upper cutout
4. Swinghandle completely snapped in
5. Adjustable cam stop

DST Swinghandle RS PrC.

More Information
Material Zinc-die
High performing lines DIRAK-SNAP-Technology
