Advantages

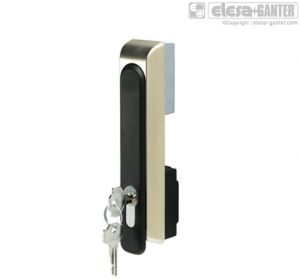

• Dual-Key Cylinder Swinghandle with pivotable operating lever
• Complies with security test to DIN EN 1630 RCII
• Can be opened with either of the two key cylinders. Accepts 40mm and 45mm profile cylinders
• The handle can be locked without using a key
• Seismic-proof according to GR-63-CORE, Issue 4
• Vibration-proof according to DIN EN 61373
• IP65 according to DIN EN 60529
• Including steel insert (saw protection)
• To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible
• Logo (1.) on handle on request

Materials

• Swinghandle and dish: zinc die, ZL 0430, black
• Other surfaces on request

Remarks

(S) Door-thickness 3mm - max. 6mm
